My Battle with Surface Water Runoff

Surface water runoff from rain, downspouts, roofs and gutters can really make your life miserable if your landscape grading hasn’t been properly engineered. The equation isn’t terribly complicated: water needs to flow away from things it can damage. But this can sometimes be overlooked or frankly creep up on you if you’re making several changes during an outdoor construction project.

A Saga of Runoff, Grading and Dampened Spirits

We don’t take many vacations as a family – the logistics are hard for us. So, a few years ago, we decided we would take our vacation money and slowly create the most “awesome backyard ever” for everyone to enjoy. It took almost 3 years to complete, one piece at a time.

We wanted a pool, a patio sitting area (far enough from the pool to have a fire pit), beautiful landscaping and lush grass. Naturally, with goals like these, we knew there would be surprises – unexpected additions and expenses.

And there surely were…

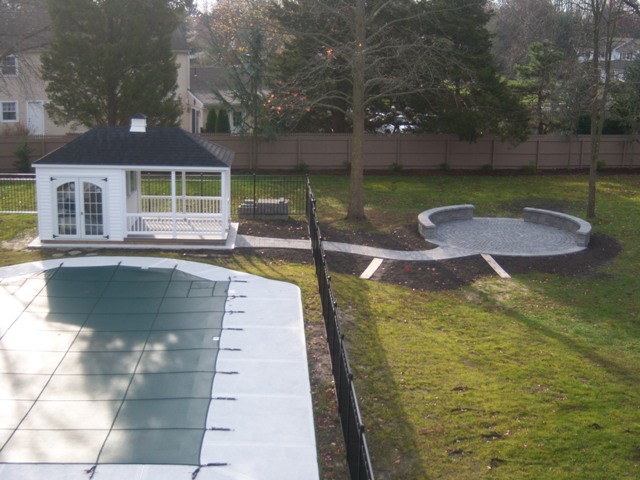

Backyard Surface Water Run Off Issues Brewing

One surprise addition came in the form of a slightly customized shed we put up by the top of the pool. We added the railings and glass front doors so it looked really nice, and we call it our “cabana” now. We keep pool stuff in there, and people can even change if they need to – as long as they don’t stand too close to those glass doors!

With an improvement like this, there’s more money to spend, of course – but you’re getting something for it: something you can see, something you can appreciate – and something you cannot easily add later.

Regarding runoff, though – take a close look at that earlier picture now… the problem may jump right out, but let me break it down into its pieces, each of which clarified as construction efforts progressed:

The Pool Grading and Rain Runoff

Installation of an in ground pool is a major construction project and always requires grading consideration. In my case, we needed to elevate the pool and surrounding property about 12-14 inches so there was no risk of runoff flowing into the pool. The pool guys knew exactly what they were doing, and in the end we used not only the fill from the excavation to achieve this grading, but a couple of additional dump trucks of dirt as well.

Backyard Pool Construction and Elevation

Had we stopped with the pool installation, this would have likely been just fine.

But no… We had more plans brewing.

The Pool Shed Elevation

The cabana was an idea that came to us while the pool was being built, and it was particularly tricky with permits and inspections. It may look really expensive, but it after a bit of research we had an idea… Let’s talk to a local shed company about making a few changes to a storage shed. The owner was willing, and it was *much* cheaper doing this.

(The word “cabana” definitely comes with a much higher price tag than the word “shed!”)

We could have put the structure on top of blue stone or concrete. But we really wanted make things as neat and precise as possible, so we opted for concrete.

And the elevation of this concrete cabana foundation?

Well, this naturally had to be at the same level at the pool concrete. Which means, in essence, that our pool shed was now also about a foot higher than the natural backyard elevation.

Pool Elevation with Cabana - Ponding Already Noted

You can start to see it coming now, right?

Hold that thought – it gets worse…

The Paver Patio and Serpentine Walk Runoff and Elevation

The final piece of the major construction items was an idea my wife had for a circular paver patio, which we both really love. My only addition idea-wise was the serpentine walkway connecting it to the cabana and effectively linking all the hardscape items.

The elevation of these items surely had to be, once again, roughly at the same level at the pool concrete. And now I was really starting to worry. So much so, that I bought and buried a 4 inch PVC pipe about a foot under where the serpentine paver walkway would be. (I had the ground marked out with spray paint for the precise walkway shape and location.)

I was starting to have very clear visions of a dam forming in the yard, and having a pipe underground would at least afford me some options if this ever really came to be.

But, maybe once the patio and walkway are installed – this will work itself out?

Here’s that original picture once more:

Backyard Surface Water Run Off Issues Brewing

The Resulting Backyard Runoff Dam

So, as I’m looking at all of these items, I’m thinking… “this isn’t good.” Then, I’m starting to panic a little bit. And then I conveyed this all to my wife, and she says, quite correctly so, that I always consider the worst case scenarios and it will very possibly be just fine.

It wasn’t fine…

Backyard Surface Water Runoff Issue - Ponding

Just lovely, right?

Now, I’m no longer panicking – now I need a drink, because I can see how this is going to have to be corrected.

The fix is going to cost a lot of additional cash, it’s going to require an entire additional construction effort, and unlike the “cabana” (pool shed) – there will ultimately be absolutely nothing to show for it.

Maybe I need two drinks.

Topsoil for Surface Runoff and Absorption

Simply put, I had to elevate a huge chunk of my backyard.

Well, not only “elevate,” but truly re-grade, overall. Massive amounts of topsoil would be required, and consideration to all facets of runoff would need to be considered. In the end, I wanted no standing water. Anywhere.

I came up with a plan which I discussed at length with my local contractor. There’s a photo below which you’ll have to expand to see; it’s not very complicated. But the key design considerations were as follows:

Item 1: Water runoff must flow away from the house

Item 2: Water runoff must not flow onto neighbors’ properties

I didn’t expect any problem with this since I have a Belgian Block landscape border around the yard – almost a mini retaining wall, really. But it needed too be stated and must always be considered. Most residential neighborhoods are initially graded with swales at the plot perimeters, which guide runoff gently down to the street. These must be maintained.

Backyard Surface Water Runoff Plan

Item 3: Water runoff must flow away from pool, cabana, patio and walkway

Item 4: Topsoil used must be dense, but capable of growing grass

You have to be a little careful here. If you buy or acquire “clean fill,” you really don’t know what you might get, and if you end up with something with the quality of beach sand, growing a lawn could be a problem. On the flip side, buying organic topsoil isn’t necessarily ideal either as it will contain manure and/or mulch, and while these are great for lawns and gardens – your grading will compact over time as the organic material decomposes.

I went with true topsoil, but made it really clear that we *must* avoid the organic variety. This was the only item that was slightly good for my wallet, as the organic topsoil was the most expensive.

Item 5: Minimal topsoil around bases of mature trees

Re-grading can be risky to existing trees if the roots are buried too deeply, and I wanted to explicitly avoid this. Some of the mature trees in my backyard are 50-60 feet tall, and I didn’t want them to slowly die over a few years from being, essentially, buried alive. Different trees have different tolerances, of course… But the main point was simply to disturb as little as possible near the focal maples, cedars and oak trees.

The Landscape Grading Transformation

I lost count. I can only estimate that we used about 20-25 dump trucks filled with top soil. It was non-stop over several days, and the removable fence section I built into my cedar fencing was imperative for all of this.

(If you’ve ever considered adding a removable fence section, it’s an absolute must-have in my experience. Scan the article at the link in the previous sentence if you want to see what this is and how you can build one for yourself.)

The resulting transformation is shown in the images that follow…

Surface Water Runoff Topsoil Resolution

Property Surface Water Runoff Grading Remediation

Property Grading with Topsoil to Address Surface Water Runoff

The Final Outcome: Any More Lakes in my Yard?

The real question upon completion of all this was, of course, will this really work? Once we have grass and there are three days of rain, will the new grading and topsoil be able to divert water away from the hardscape areas while allowing for dispersion and absorption into the soil, instead of the ponding that had formed my earlier backyard lake?

Short answer: Yes, it worked.

But I knew all along there was a risk it wouldn’t, and this was part of the reason this was such a painful effort. Lots of work, lots of money, nothing to show for it in the end (more dirt under my grass)… And it might not even work.

But it did. Thank goodness.

The following shots were taken just a couple of weeks ago – three years after all the major construction illustrated above, with a decent lawn and plenty of time for the topsoil areas to have settled. No ponding at all. In fact, the pool landscaping has really been thriving, I’m quite happy to say.

Backyard Grading Surface Water Runoff Resolved

Backyard Surface Water Runoff Topsoil Remediation

What if this Hadn’t Worked – Other Runoff Options?

Naturally, I was thinking about this a lot. It wasn’t until we did, truly, have three days of steady rain that I knew I was okay. But had this failed, what would I have considered next? The following:

Adding a Dry Well

A dry well would have worked for me, and I had already picked out the position if needed. This would have been much more money, and something I’m glad to say I didn’t have to take any further.  I would have surely hired a local contractor to go this route – as this is another big job.

Redirecting Downspouts

I did this even though it didn’t appear to be imperative. The downspouts leading to my backyard now have underground pipes (using flexible, perforated 4-inch piping) leading the water directly to safe areas, and in one case watering a line of Leyland Cypress quite nicely.

Adding a Retaining Wall

While retaining walls may surely work for some, it was difficult to see how I might incorporate this into my backyard given my layout and elevations. Nevertheless, this is a great way to deal with surface water runoff management. Retaining walls can also make beautiful additions to any landscape design if done right – functional as well as aesthetic.

Moving back to New York and living in my Mom’s garage

That’s right. I said it. When all else fails, run away. Fortunately, I don’t currently live in that garage. Though I surely do sometimes miss my Mom’s cooking… especially, for all you other Italian-Americans out there, her awesome pasta fagioli!

In the end, though, surface water runoff management is ultimately as straight forward as it is unforgiving: we must always be sure that water flows away from the items it can damage.
